TITANIUM PRODUCTS
|
|
TITANIUM HEATING & COOLING COILS
For steam heating and hot water or cool solution, normally Titanium Coils are used. Also used are Stainless Steel, Tantalum & Zirconium. Built to customer's specific requirement such seamless coils are fabricated to the shape & size and tested.
|
|
|

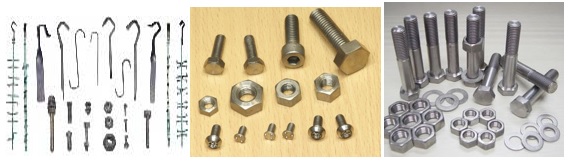

TITANIUM JIGS, FIXTURES AND FASTENERS
Titanium Jigs, Fixtures specially for PCB Plating, Anodizing and other industrial usages are fabricated as per Technicalities. Fasteners like Bolts, Nuts Washers, Screws, Rivets, Hooks etc are purely tailor made as per BSW, BSP, Metric, UNC, UNF, NPT & BSPT specifications.
|
|
|
BASKET ANODE BAGS
If you require anode bags for your Electro-Plating solution look no further. For over 36 years we have supplied high quality anode bags to the electro-plating industry worldwide.
KCPL Anode bags can be made to order and for virtually any application, more than likely we have produced the anode bag you are looking for. Please contact us to discuss your application and requirements.
KCPL Anode bags for electroplating baths are used to coat plate anodes and anode baskets in order to prevent the residues arising from the electrolytic solution process from entering the electrolyte.
KCPL Anode bags are for example used for cyanide and acid copper electrolytes as well as nickel and zinc electrolytes.
Our anode bags are manufactured from 100% polypropylene. For the various possible applications we offer qualities with different grades of fineness. For certain applications, where a softer material has some advantages, our anode bags are alternatively available made of polypropylene fabric.
By default, the production of our anode bags in the case of anode baskets is done with sewn-in base and in the case of plate anodes without sewn-in base. All bags are provided with sewn-on cords made of polypropylene for fastening.
The dimensions of KCPL - Anode bags are adapted to the dimensions of the anode basket resp. the plate anodes. Careful processing and an accurately fitting manufacture are guaranteed with our bags.
|
|
Types of KCPL Bags and Applications:
• Anode Basket Bags (Square or Round)
• Slab Anode Bags
• Reel-to-Reel Bags
• Electroless Nickel Bags
• Ring Bags
• Carbon Bags
• Custom Bags
• Crap Trap Bags
|
|
|
|
Sizes
Available in a choice of the following measurements:-
Width: 6, 8, 10 or 12 inches
Depth: 1, 1.5 or 2 inches
Height: 12, 15, 18, 21, 24, 30, 36, 42 or 48 inches
|
|
TITANIUM HEATERS
Immersion Heaters (Bobbin and Tubular types) in seamless tubes capacity 0.5 kw to 5 kw and heating length 8" to 48", in diameter with suitable non heating zone and terminal box. This is having the feature of replaceable heating element. Special heaters are made to specification and design.
Titanium has proven to be a good choice for many solution except in fluorides, sulphuric acid or hydrochloric acid.
Construction
Made from SS / Titanium tubing with replaceable Bobbin Type heating elements inside, provided with mounting plate and terminal box.
Application
Titanium - for vertical use for Nitric and Chromic acid Solution.
R & D / Laboratories
Nickel,
Alkali,
Gold solutions etc
|
|
|
|
|
